Microsoft Azure – Security Center Just-in-time Deep Dive

.\Set-JustInTimePolicyForSubscription.ps1 -Subscription "Subscription01" -AllowedSourceAddressPrefix "172.16.1.0/24","192.168.1.0/24"

.\Set-JustInTimePolicyForSubscription.ps1 -Subscription "Subscription01" -ResourceGroupName "ResourceGroup01" -AllowedSourceAddressPrefix "*"

.\Open-JustInTimeAccessRequestVm.ps1 -Name "Server01" -Subscription "Subscription01" -ResourceGroupName "ResourceGroup01" -PortNumber 3389

Get-AzRoleDefinition | where {$_.Actions -eq "Microsoft.Security/locations/jitNetworkAccessPolicies/initiate/action"}

Get-AzProviderOperation Microsoft.Security/locations/jitNetworkAccessPolicies/*

$role = Get-AzRoleDefinition "Virtual Machine Administrator Login"
$role.Id = $null
$role.Name = "Just-in-time Access Request Initiator Administrator"
$role.Description = $role.Description + " Additionally can initiate Just-in-time (JIT) access requests to Virtual Machines."
$role.Actions.Add("Microsoft.Security/locations/jitNetworkAccessPolicies/read")
$role.Actions.Add("Microsoft.Security/locations/jitNetworkAccessPolicies/initiate/action")
$role.AssignableScopes.Clear()
$role.AssignableScopes.Add("/subscriptions/<subscriptionId>")
New-AzRoleDefinition -Role $role

Get-AzJitNetworkAccessPolicy | Remove-AzJitNetworkAccessPolicy

Get-AzJitNetworkAccessPolicy -ResourceGroupName "ResourceGroup01" | Remove-AzJitNetworkAccessPolicy

<#
    .SYNOPSIS
      Configures a Just-in-time (JIT) access policy on all Virtual Machines (VM) within a subscription.
    .PARAMETER Subscription
      Subscription to target.
    .PARAMETER AllowedSourceAddressPrefixes
      Source subnets allowed for JIT access profile.
    .PARAMETER ResourceGroupName
      Resource Group Name to target. (Optional)
    .DESCRIPTION
      In short, JIT is basically a dynamic Network Security Group (NSG) rule. Once a VM has a JIT policy applied, a user must request access to a VM.
      If the user has the appropriate Role Based Access Control (RBAC), then the request will be granted, otherwise it will be denied.
      Azure Security Center (ASC) automatically configures the NSG and Azure Firewall to allow inbound traffic to the selected ports and requested source IP addresses or ranges, for the amount of time that was specified.
      After the time has expired, Security Center restores the NSGs to their previous states. Those connections that are already established are not being interrupted, however.
      More information is available here: https://docs.microsoft.com/en-us/azure/security-center/security-center-just-in-time
      RBAC permissions needed to configure and use JIT are available here: https://docs.microsoft.com/en-us/azure/security-center/security-center-just-in-time#permissions-needed-to-configure-and-use-jit
      This script will query all VMs within the selected subscription and attempt to apply the JIT access policy below to each and every VM that is found.

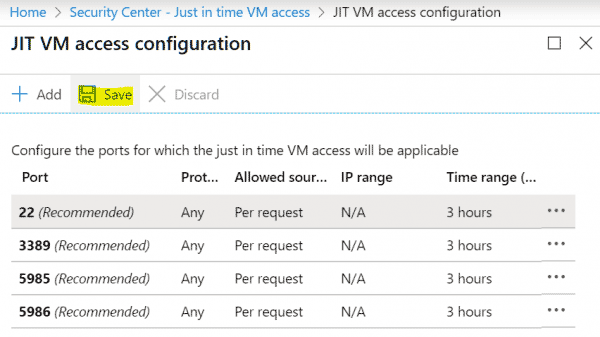

      JIT policy breakdown:
      - Ports: 22, 3389, 5585, 5586
      - Protocol: *
      - AllowedSourceAddressPrefix: Allowed Source Subnets for JIT access profile, provided by input parameter AllowedSourceAddressPrefixes.
      - MaxRequestAccessDuration: 3 Hours
      If you need to change any of these values (Ports, Protocol, MaxRequestAccessDuration), edit the function Set-JustInTimePolicyForVM in this script.
      Location is also hard-coded to canadacentral, change it if required.
      Since JIT policies work at the Resource Group (RG) level, we loop through each RG looking for VMs and build a JIT policy based on this logic.
      JIT Access Policy must be named "default" for ASC to treat it as configured JIT enabled VM.

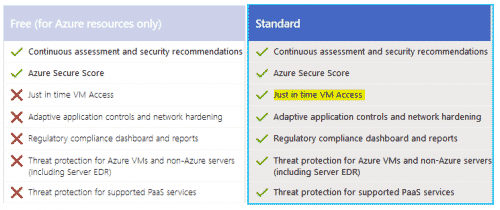

      Pre-requisites: Azure Security Center needs to be enabled (Standard plan), this enables the JIT functionality.
      If it's not set to Standard plan, script will throw "Subscription is not in the Standard or Standard Trial subscription plan. Please upgrade to use this feature." when trying to create JIT policy.
      VMs also require the following:
      - Resource type: Azure Resource Manager (no Classic resources)
      - Associated NSG at subnet or nic level, or both.

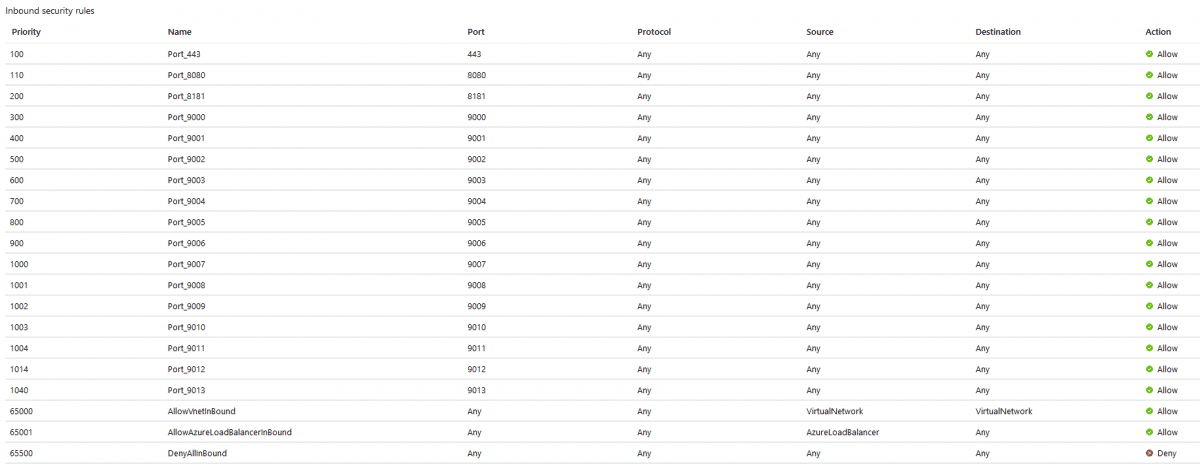

      Through testing it was determined that:

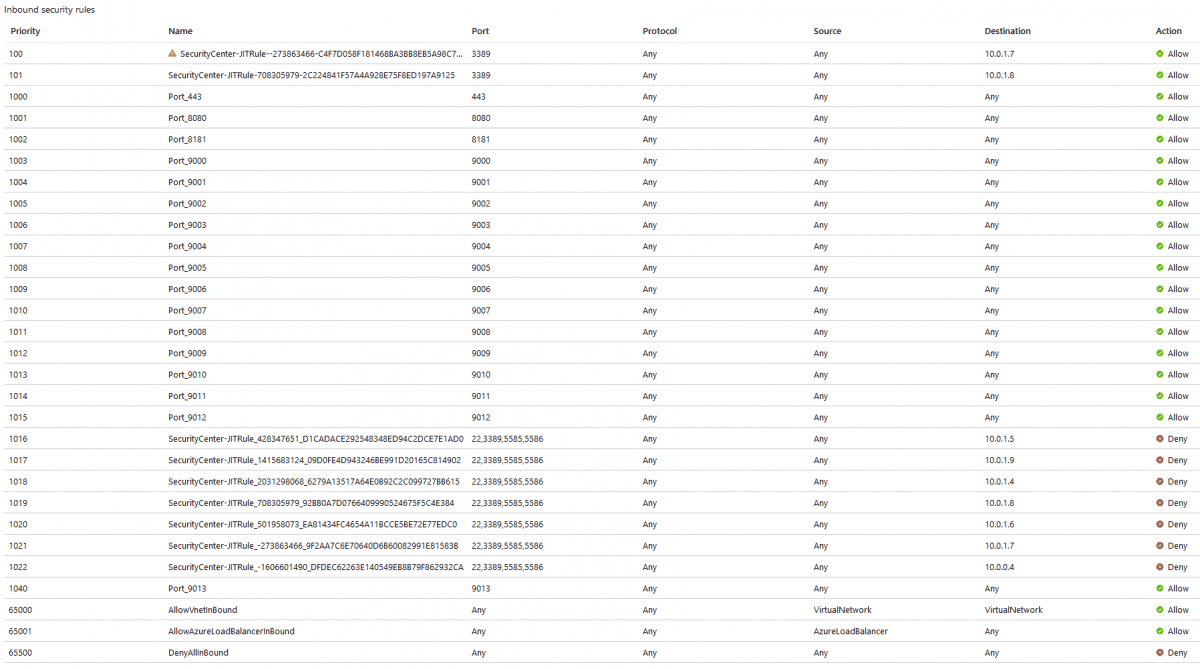

      - The default inbound allow rule priority start at 100, incrementing by 1 each time.
      - The default inbound deny rule priority starts at 1014, incrementing by 1 each time.
      Warning: When applying a JIT access policy to a VM or a series of VMs, Microsoft will reprioritize inbound rules within the NSG.
      Warning: If a VM is moved to a new RG after a JIT access policy was applied, the VM will be removed from the existing policy and a new JIT access policy must be applied.
      Also, there may be manual cleanup required to the inbound security rules for the NSG if this occurs.
      To delete all JIT access policies within a Subsciption, use the following command: Get-AzJitNetworkAccessPolicy | Remove-AzJitNetworkAccessPolicy
      To delete all JIT access policies within a Resource Group, use the following command: Get-AzJitNetworkAccessPolicy -ResourceGroupName "ResourceGroup01" | Remove-AzJitNetworkAccessPolicy
      Required modules:
      - Az.Accounts
      - Az.Compute
      - Az.Network
      - Az.Resources
      - Az.Security
    .NOTES
      Version: 1.0
      Author:  Lucas Jackson
      Date:    1/18/2020
    .EXAMPLE
      .\Set-JustInTimePolicyForSubscription.ps1 -Subscription "Subscription01" -AllowedSourceAddressPrefix "172.16.1.0/24","192.168.1.0/24"
      This command onboards all Virtual Machines within the specified Subscription and only allows requests from 172.16.1.0/24 and 192.168.1.0/24.
    .EXAMPLE
      .\Set-JustInTimePolicyForSubscription.ps1 -Subscription "Subscription01" -ResourceGroupName "ResourceGroup01" -AllowedSourceAddressPrefix "*"
      This command onboards all Virtual Machines within the specified Resource Group and allows requests from all source IPs.
    .LINK
      https://www.devopspertise.com
#>
[CmdLetBinding()]
  param(
    [Parameter(Mandatory = $true)]
    [ValidateNotNullorEmpty()]
    [String]$Subscription,

    [Parameter(Mandatory = $true)]
    [ValidateNotNullorEmpty()]
    [String[]]$AllowedSourceAddressPrefixes,

    [Parameter(Mandatory = $false)]
    [ValidateNotNullorEmpty()]
    [String]$ResourceGroupName
  )

$ErrorActionPreference = "Stop"

if($ResourceGroupName) {
  Write-Host "$Subscription subscription and $ResourceGroupName resource group selected"
}
else {
  Write-Host "$Subscription subscription selected"
}

function Set-JustInTimePolicyForVM {
param(
      [Parameter(Mandatory = $true)]
      [ValidateNotNullorEmpty()]
      [String[]] $AllowedSourceAddressPrefixes,

      [Parameter(Mandatory = $true)]
      [ValidateNotNullorEmpty()]
      [String]$Id
)
  process
    {
      if($AllowedSourceAddressPrefixes -eq "*") {
        $JitPolicy = (@{
          Id=$Id
          Ports=(@{
            number=22;
            protocol="*";
            allowedSourceAddressPrefix=@("*");
            maxRequestAccessDuration="PT3H"},
            @{
            number=3389;
            protocol="*";
            allowedSourceAddressPrefix=@("*");
            maxRequestAccessDuration="PT3H"},
            @{
            number=5585;
            protocol="*";
            allowedSourceAddressPrefix=@("*");
            maxRequestAccessDuration="PT3H"},
            @{
            number=5586;
            protocol="*";
            allowedSourceAddressPrefix=@("*");
            maxRequestAccessDuration="PT3H"})})
      }
      else {
        $JitPolicy = (@{
          Id=$Id
          Ports=(@{
            number=22;
            protocol="*";
            allowedSourceAddressPrefixes=$AllowedSourceAddressPrefixes;
            maxRequestAccessDuration="PT3H"},
            @{
            number=3389;
            protocol="*";
            allowedSourceAddressPrefixes=$AllowedSourceAddressPrefixes;
            maxRequestAccessDuration="PT3H"},
            @{
            number=5585;
            protocol="*";
            allowedSourceAddressPrefixes=$AllowedSourceAddressPrefixes;
            maxRequestAccessDuration="PT3H"},
            @{
            number=5586;
            protocol="*";
            allowedSourceAddressPrefixes=$AllowedSourceAddressPrefixes;
            maxRequestAccessDuration="PT3H"})})
      }

      $JitPolicyArr=@($JitPolicy)
      return $JitPolicyArr
  }
}

# Set Context, see if we have access
# Get all Virtual Machines
# Loop through Virtual Machines applying the JIT policy defined
Try {
  # Set Context
  Set-AzContext -Subscription $Subscription

  # Get Resource Groups within Context
  # Check if ResourceGroupName param has been passed or not
  if ($ResourceGroupName) {
    $allRgs = $ResourceGroupName
  }
  else {
    $allRgs = Get-AzResourceGroup
  }

  # Get Virtual Machines within Resource Group
  foreach($rg in $allRgs) {
    $setJitPolicyArr = $null

    if ($ResourceGroupName) {
      $resourceGroupNameCurrent = $ResourceGroupName
    }
    else {
      $resourceGroupNameCurrent = $rg.ResourceGroupName
    }

    Write-Host "`nGetting VMs in $resourceGroupNameCurrent"
    $allVmsRg = Get-AzVm -ResourceGroup $resourceGroupNameCurrent

      foreach($vm in $allVmsRg) {
        $nsgFound = $false

        Write-Host $vm.Name $vm.Id
        foreach($nic in $vm.NetworkProfile.NetworkInterfaces.Id) {
          Write-Host "NIC: $nic"
          $existNsgVm = Get-AzNetworkInterface | Where-Object Id -eq $nic

          if ($existNsgVm.NetworkSecurityGroup.Id) {
            Write-Host "NSG NIC:" $existNsgVm.NetworkSecurityGroup.Id`n
            $nsgFound = $true
            break
          }

          $vmIpConfig = Get-AzNetworkInterface | Where-Object Id -eq $nic | Get-AzNetworkInterfaceIpConfig
          $allVirtualNetwork = Get-AzVirtualNetwork

          foreach($virtualNetwork in $allVirtualNetwork) {
            foreach($subnet in $virtualNetwork.Subnets) {
              if($subnet.Id -eq $vmIpConfig.Subnet.Id -and $subnet.NetworkSecurityGroup.Id) {
                Write-Host "NSG SUBNET:" $subnet.NetworkSecurityGroup.Id`n
                $nsgFound = $true
                break
              }
            }
          }
        }

        if($nsgFound) {
          $setJitPolicy = Set-JustInTimePolicyForVM -Id $vm.Id -AllowedSourceAddressPrefixes $allowedSourceSubnets
          $setJitPolicyArr+=@($setJitPolicy)
        }
        else {
          Write-Host "WARNING: No NSG found for" $vm.Name "<--- resource ignored`n" -ForegroundColor "Yellow"
        }
      }
      if($setJitPolicyArr) {
        Set-AzJitNetworkAccessPolicy -Kind "Basic" -Location "canadacentral" -Name "default" -ResourceGroupName $resourceGroupNameCurrent -VirtualMachine $setJitPolicyArr
      }
      else {
        Write-Host "No suitable VMs found for onboarding in resource group $resourceGroupNameCurrent"
      }
  }
}
Catch {
  Write-Host $error[0] -ForegroundColor "Red"
  exit 10
}

<#
    .SYNOPSIS
      Starts a 3 hour Just-in-time (JIT) session for a virtual machine.
    .PARAMETER Subscription
      Subscription to target.
    .PARAMETER ResourceGroupName
      Name of the resource group where the VM resides.
    .PARAMETER Name
      Name of the Virtual Machine (VM).
    .PARAMETER PortNumber
      Port number that you would like to open (22,3389,5585,5586).
    .DESCRIPTION
      In short, JIT is basically a dynamic Network Security Group (NSG) rule. Once a VM has a JIT policy applied, a user must request access to a VM.
      If the user has the appropriate Role Based Access Control (RBAC), then the request will be granted, otherwise it will be denied.
      Azure Security Center (ASC) automatically configures the NSG and Azure Firewall to allow inbound traffic to the selected ports and requested source IP addresses or ranges, for the amount of time that was specified.
      After the time has expired, Security Center restores the NSGs to their previous states. Those connections that are already established are not being interrupted, however.

      More information is available here: https://docs.microsoft.com/en-us/azure/security-center/security-center-just-in-time
      RBAC permissions needed to configure and use JIT are available here: https://docs.microsoft.com/en-us/azure/security-center/security-center-just-in-time#permissions-needed-to-configure-and-use-jit

      This script will send a "Request Access" operation for a VM that has a JIT access policy enabled.

      Location is hard-coded to canadacentral, change it if required.

      This script is for users who want to request access programmatically versus using the Azure Portal.

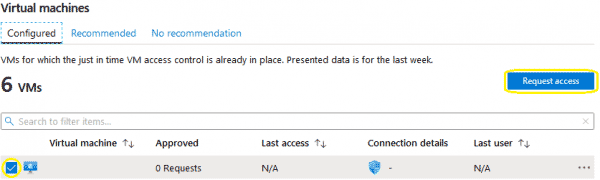

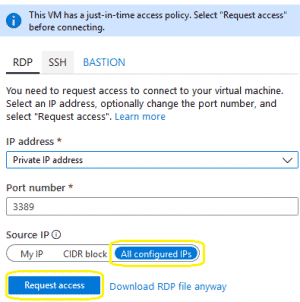

      You can request access using the Azure Portal by going to the VM and clicking Connect, or by going to ASC and clicking on Just in time VM access.

      Common use cases for this script is when you want to use the management ports of a VM, eg. SSH (port 22) or RDP (port 3389). By default the access request asks that the port be opened for a duration of 3 hours.
      Any connection established during the 3 hour window that persists after the window expires will stay active.

      Start-AzJitNetworkAccessPolicy cmdlet currently doesn't support the param allowedSourceAddressPrefixes, however the REST API does, therefore we are forced to use a REST API instead of the cmdlet.

      Required modules:
      - Az.Accounts
      - Az.Compute
      - Az.Security
    .NOTES
      Version: 1.0
      Author:  Lucas Jackson
      Date:    1/18/2020
    .EXAMPLE
     .\Open-JustInTimeAccessRequestVm.ps1 -Subscription "Subscription01" -ResourceGroupName "ResourceGroup01" -Name "Server01" -PortNumber 3389

      Requests access to a Virtual Machine over port 3389 (Remote Desktop Port).
    .LINK
      https://www.devopspertise.com
#>

param(
      [String]$Location = "canadacentral",

      [Parameter(Mandatory = $true)]
      [ValidateNotNullorEmpty()]
      [String]$Subscription,

      [Parameter(Mandatory = $true)]
      [ValidateNotNullorEmpty()]
      [String]$ResourceGroupName,

      [Parameter(Mandatory = $true)]
      [ValidateNotNullorEmpty()]
      [String]$Name,

      [Parameter(Mandatory = $true)]
      [ValidateSet(22,3389,5585,5586)]
      [ValidateNotNullorEmpty()]
      [Int]$PortNumber

)

$ErrorActionPreference = "Stop"

Write-Host "$Subscription subscription selected`n"

Try {
      # Set Context
      $azContext = Set-AzContext -Subscription $Subscription
      $subscriptionId = $azContext.Subscription.Id

      # Get Bearer token for REST API from the current authenticated session
      $azProfile = [Microsoft.Azure.Commands.Common.Authentication.Abstractions.AzureRmProfileProvider]::Instance.Profile
      $profileClient = New-Object Microsoft.Azure.Commands.ResourceManager.Common.RMProfileClient($azProfile)
      Write-Host "Getting Bearer token for current session...`n"
      $token = $profileClient.AcquireAccessToken($azContext.Tenant.TenantId)
      $tokenBearer = ('Bearer {0}' -f ($token.AccessToken))

      # Get the VM
      $vmTarget = Get-AzVm -Name $Name -ResourceGroup $ResourceGroupName

      # Get the ASC JIT Access Policy for the Resource Group
      Write-Host "Getting corresponding Azure Security Center Just-in-time access policy for $Name"
      $jitPolicy = Get-AzJitNetworkAccessPolicy -ResourceGroupName $ResourceGroupName -Name "default" -Location $Location

      # Determine if there is a JIT Access Policy associated to the VM
      # Since each entry is unique, we can use IndexOf to determine the allowedSourceAddressPrefix(es)
      $arrayJitPolicy = $jitPolicy.VirtualMachines.Id
      foreach($vm in $arrayJitPolicy) {
            if($vm -eq $vmTarget.Id) {
                  $foundPolicy = $true
                  $arrayIndexVM = $arrayJitPolicy.IndexOf($vm)
                  $arrayAllowedSourcePorts = $jitPolicy.VirtualMachines[$arrayIndexVM].Ports.Number
                  foreach($port in $arrayAllowedSourcePorts) {
                        if($port -eq $PortNumber) {
                              $arrayIndexPort = $arrayAllowedSourcePorts.IndexOf($port)
                              $arrayAllowedSourceAddressPrefix = $jitPolicy.VirtualMachines[$arrayIndexVM].Ports[$arrayIndexPort].AllowedSourceAddressPrefix
                              $arrayAllowedSourceAddressPrefixes = $jitPolicy.VirtualMachines[$arrayIndexVM].Ports[$arrayIndexPort].AllowedSourceAddressPrefixes
                              if($foundPolicy -and ($arrayAllowedSourceAddressPrefix -or $arrayAllowedSourceAddressPrefixes)) {
                                    Write-Host ("Found: " + $jitPolicy.Id)
                                    if($arrayAllowedSourceAddressPrefix) {
                                          Write-Host "AllowedSourceAddressPrefix: $arrayAllowedSourceAddressPrefix"
                                    } else {
                                          Write-Host "AllowedSourceAddressPrefixes: $arrayAllowedSourceAddressPrefixes"
                                    }
                                    $justication = "Automated JIT Access Request"
                              }
                              break
                        }
                  }
                  break
            }
      }
      if(!$foundPolicy) {
            Write-Host "`nERROR: Could not find corresponding Azure Security Center Just-in-time access policy for $Name" -ForegroundColor "Red"
            exit 20
      }

      # Build the JIT policy request
      # Build request header and body to pass with REST API request
      if($arrayAllowedSourceAddressPrefix) {
            $JitPolicyVm = (@{
                  virtualMachines=(@(@{
                  id=$vmTarget.Id
                  ports=(@(@{
                  number=$PortNumber;
                  endTimeUtc=[DateTime]::UtcNow.AddHours(3);
                  allowedSourceAddressPrefix=$arrayAllowedSourceAddressPrefix}))}))
                  justification=$justication})
      }
      elseif($arrayAllowedSourceAddressPrefixes) {
            $JitPolicyVm = (@{
                  virtualMachines=(@(@{
                  id=$vmTarget.Id
                  ports=(@(@{
                  number=$PortNumber;
                  endTimeUtc=[DateTime]::UtcNow.AddHours(3);
                  allowedSourceAddressPrefixes=@($arrayAllowedSourceAddressPrefixes)}))}))
                  justification=$justication})
      }
      else {
            Write-Host "`nERROR: Could not find AllowedSourceAddressPrefix(es) for port $PortNumber" -ForegroundColor "Red"
            exit 21
      }

      $requestBody = $JitPolicyVm | ConvertTo-Json -Depth 5

      $requestHeader = @{
            'Authorization'=$tokenBearer
      }

      # Request access to VM using REST API
      $uri = "https://management.azure.com/subscriptions/$subscriptionId/resourceGroups/$ResourceGroupName/providers/Microsoft.Security/locations/$Location/jitNetworkAccessPolicies/default/initiate?api-version=2015-06-01-preview"
      Write-Host "`nRequesting Just-in-time access to $Name for 3 hours"
      Write-Host $requestBody`n
      Write-Host $uri`n
      Invoke-RestMethod -Uri $uri -Headers $requestHeader -Body $requestBody -Method POST -ContentType 'application/json'

      # Request access to the VM using PowerShell
      # Cannot use this method since cmdlet does not support allowedSourceAddressPrefixes at time of script creation
      #$JitPolicyArr=@($JitPolicy)
      #Write-Host "Requesting Just-in-time access to $Name for 3 hours"
      #Start-AzJitNetworkAccessPolicy -ResourceId $jitPolicy.Id -VirtualMachine $JitPolicyArr
}
Catch {
      Write-Host $error[0] -ForegroundColor "Red"
      exit 10
}
